KUBOTA M854K/M854KQ TRACTOR

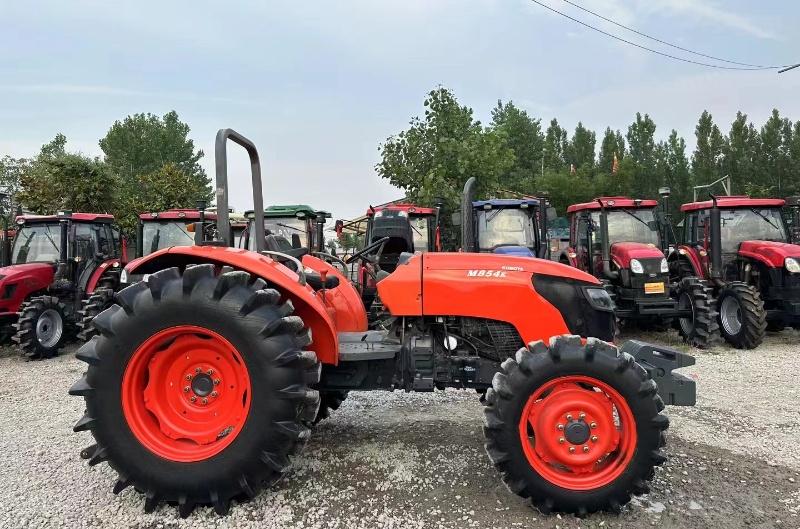

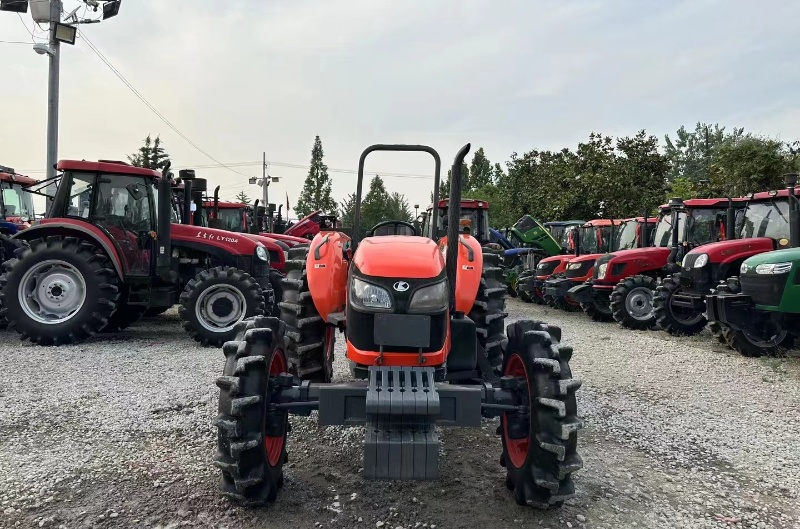

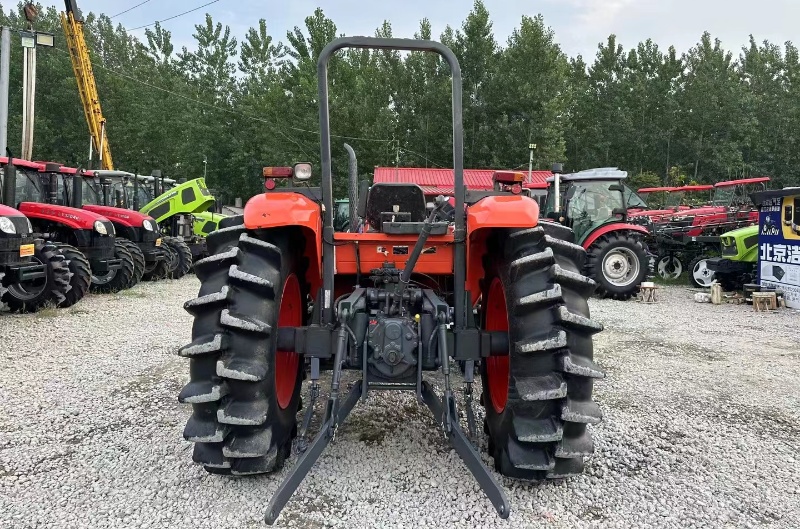

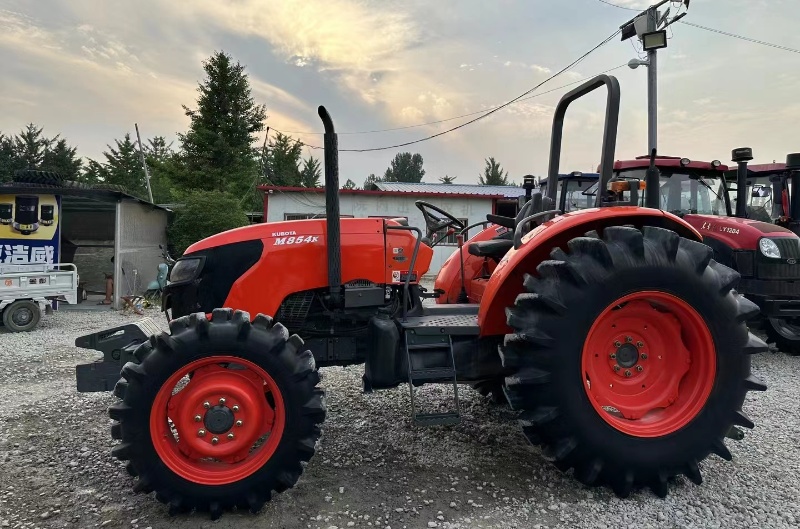

KUBOTA M854K/M854KQ tractor

Kubota 85hp 4wd tractor

01, the power of excellent performance

02, flexible and reliable front axle

03, fast and efficient control

04, comfortable ride

Advantages Specification Packing and delivery Manufacturing Technique

Advantages

1. Kubota Diesel engine: Equipped with Kubota 4-cylinder 4-stroke vertical water-cooled diesel engine, it achieves large torque output while adopting miniaturization design. Sufficient power and strong traction force, so that the machine in the corresponding heavy load operation power reserve is also sufficient.

2. excellent air intake system: the use of 4 valve technology (4 cylinders 16 valves), combined with the central injection system and turbocharging device, in order to ensure high power output at the same time, to achieve the effect of high efficiency and energy saving.

3.Sealed bevel gear front axle: The Kubota four-wheel drive tractor is equipped with sealed bevel gear front axle, which can prevent mud and debris from entering, not easy to leak oil, and can reduce the number of maintenance, and longer service life.

4.55 degrees large steering Angle: The Kubota four-wheel drive tractor has 55 degrees large steering Angle, turning more quickly, shortening the operation time, reducing fuel consumption, and quite high efficiency. (M854-KS/M854-KQS maximum steering Angle for narrow wheelbase is 50 degrees)

5. Shuttle-type reversing: it is convenient for drivers to switch forward and backward, especially in Oda fast and narrow sections or when using loaders, it has more advantages.

7. Synchronizer shift: M704-K/M704-KQ adopts forward and backward 8-gear transmission, 3 and 4 gear synchronizer shift, 1 and 2 gear shift with meshing sleeve. M854-k /M854-KQ/M854-KS/M854-KQS/M954-K/M954-KQ adopts the forward and backward 12 gear transmission, the main transmission synchronizer shifts, can realize the smooth shift without stopping, more convenient and more smooth power switching.

8.independent, wet PTO clutch: hydraulic control mode, the user does not need to step on the main clutch, the right hand gently pull can complete the PTO clutch connection or separation, even if a long day of frequent operation is not easy to fatigue.

9.the main control handle centralized setting: the main and auxiliary transmission, hydraulic output, force level adjustment, PTO and other operating handle centralized setting on the right side, can make the driver more convenient to control the tractor.

10.Disc plough is a kind of hanging agricultural machine, used in the tractor, is the upgrade of the share plow variety, the operation when the plough rotation movement, used to break the soil, turning stubble, cut off crops roots, break the brick in the soil layer, especially practical in the reclamation of overgrown wasteland.

11.spacious and comfortable driving space: the cab with good sealing performance can isolate noise to a large extent in the noisy operating environment, so that the driver can work in a relatively quiet and comfortable environment, so as to reduce the fatigue of the driver.

Flat floor design, the main handle is set in a centralized way, which makes the driver's operation more convenient and comfortable, so as to reduce the labor intensity of the driver to a greater extent.

12. heating and cooling air conditioning: M854-KQ/M854-KQS and M954-KQ models are equipped with heating and cooling air conditioning cab, whether it is cold or hot summer, can provide users with a relaxed and comfortable working environment.


Our service

One-year warranty service


Payment method

What payment method do we have?

T/T 30% as deposit, and 70% before delivery We received PayPal, Western Union, and direct bank transfers to our company account, you also can transfer to our Alibaba company bank account.

Specification

SPECIFICATION

Model

KUBOTA M854

KUBOTA M854Q

Total Type

no cab, with safety frame

with cab

Drive

four-wheel drive

Dimension

Total length  (mm)

4200

Overall width(shortest wheelbase) (mm)

2150

Overall height  ( mm )

2570

2640

Minimum ground clearance  ( mm )

475

460

Architecture quality  (kg)

2875

3100

Engine

Model

V3800-DI-T

Pattern

4-stroke water-cooled direct injection diesel engine

Number of cylinders

4(turbo-charged)

Rated revolving speed  ( rpm )

2500

Power  ( kw )

64

Power output (PTO) power  ( kw )

56

Storage battery

12V, RC: 160 min, CCA 900A

Fuel tank capacity  ( L )

90

110

Travel unit

Standard tires (flat round tires)

front wheel 12.4-24, rear wheel 18.4-30

Clutch

hydraulic pressure, wet, multi-disc

Steering wheel

hydraulic power

Braking system

hydrostatic pressure

Gear : forward / back

12/12

Minimum turning radius ( m )

4.2

Tread

Front wheel ( mm )

1660

Rear wheel ( mm )

1650~1850


Suspension system ( 3p )

II

Maximum lifting force ( KN )

610 mm back suspension point

15.1 ( 1541kg )

Traction system

direction -adjustable swing draw-bar

Power take-off

Stand-alone type

No. of splines

8

Rotation speed

 540 / 720

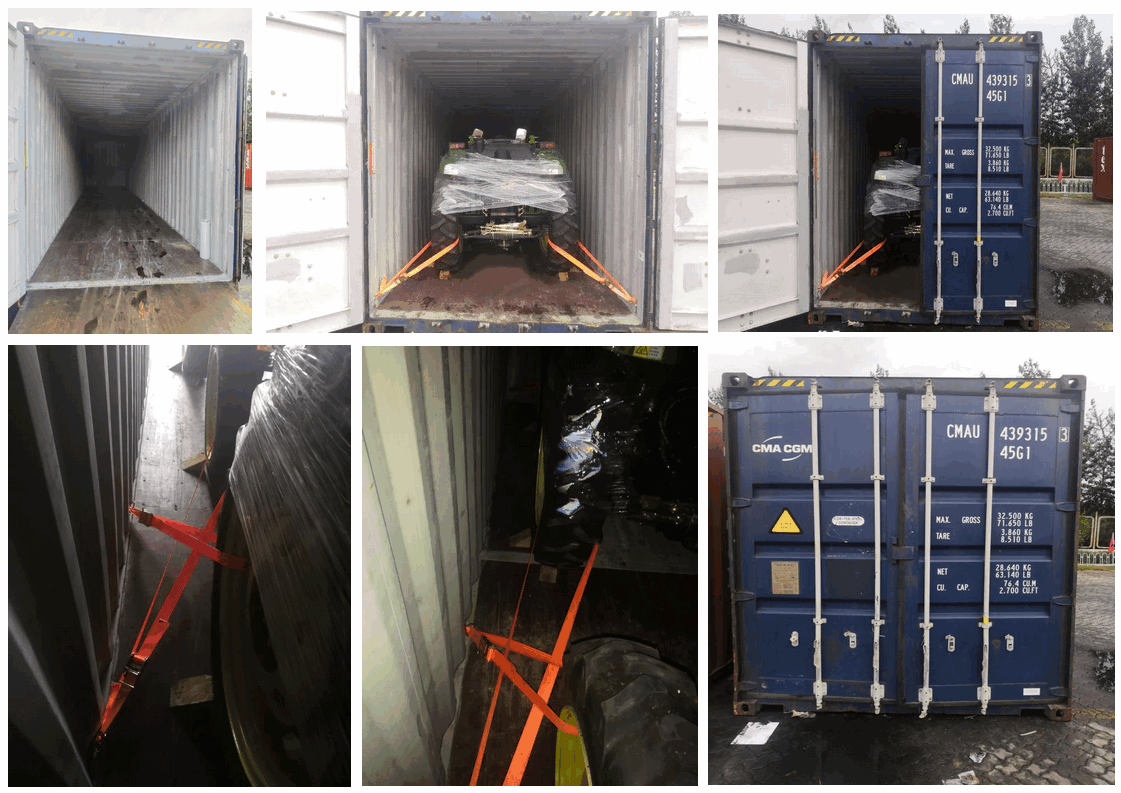

Packing and delivery

KUBOTA M854K/M854KQ TRACTOR

Manufacturing Technique

Manufacturing Technique

Authentication

What certifications do we have

Export Cases

Export Cases

Export Cases

Export Cases

Export Cases

Export Cases

Customer Reviews

FAQ

Q:Are you a trading company or a manufacturer?

A:

We manufacture products ourself and we source from other collaborative factories too which guarantees a competitive price andproduct variety.

Q:How do I know your quality?

A:

We can take parts photos for your reference and show you different quality and you can compare.

Q:I'm a end user and I need small quantity, what do I do?

A:

PIs check with our sales team if it's in stock, if have stock and we can send you via Dhl, FeDex and soon.

Q:Can I get a sample first? And how does I charge?

A:

Yes, free sample is available, 1pc or 2pcs all can send to you when buyer pays the freight charge.

Q:What's the benefit for long term importers or distributors?

A:

For those regular customers, we offer incredible discount, sample free shipping, free sample for custom design, custom packaging and QC as per custom requirements.

Q:What is your terms of payment?

A:

T/T 30% as deposit, and 70% before delivery We received paypal ,western union and directly bank transfer to our company account, you also can transfer to our Alibaba company bank account.

Q:Can you produce according to the samples?

A:

Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q:Do you test all your goods before delivery?

A:

Yes, we have 100% test before delivery and we will send test vedio our clients.

Q:How do you make our business long term and good relationship?

A:

We have good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business with them Welcome to contact with us, Thank you very much.
