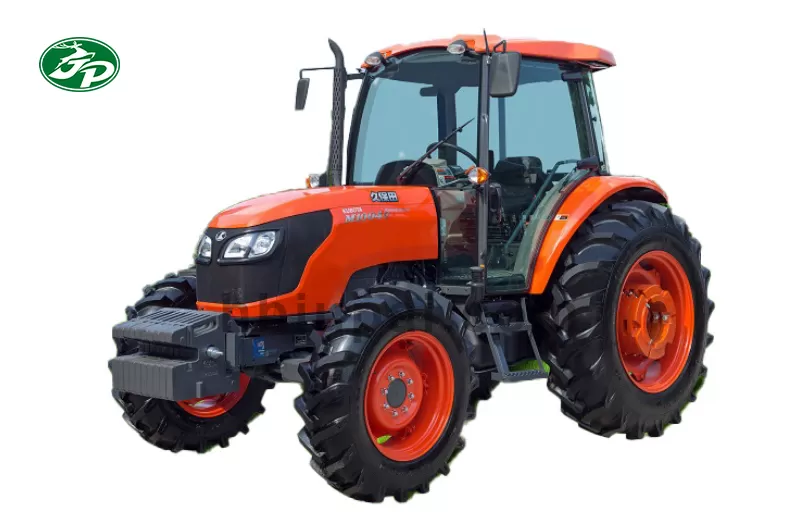

KUBOTA M1004R/M1004Q tractor

Advantages

1,V3800-DI-TI

The V3800-DI-TI is standard on the M1004 tractor. This powerful diesel engine utilizes a reliable four-valve and central direct injection system to achieve more power. Combined with the intercooled supercharger in the V3800-DI-TI, you can get whatever power you need, especially at low RPM, easily achieve heavy duty operation, and achieve stable traction in operation.

2,Exhaust up to standardⅡ

Exhaust standards have reached the standard of GB20891-2007Ⅱand EuropeⅡ standards.

The new engines of the Kubota M-series tractors meet the environmental requirements of the secondary emission standards.

3,Joystick arrangement

All the operating controls are on the right side of the console for easy operation (except the four-wheel drive controls).

Arrangement of switches

For continuity of operation, all electrical switches are located on the right side of the console.

The overall layout

All control switches and levers are carefully arranged to make them easier to use.

4,Digital panel

The LED display allows you to observe the important functions of the M-SERIES tractor clearly and easily. You can observe digitized running speed, power output shaft (PTO) speed, and timer information. The analog indicator includes a large tachometer, thermometer and fuel gauge. In addition, the M-series tractors also have a battery warning light to prevent unexpected battery failure.

5,Tilt adjustable steering wheel

The tilt adjustable steering wheel allows drivers of all heights and sizes to steer the tractor comfortably.

6,12 gears forward / 12 gears backward

To facilitate heavy duty operations such as plowing, mowing, and towing heavy trailers, the M1004 has a 12-speed forward and backward hydraulic transmission. The transmission has six variable and high/low gears to provide 12 forward and 12 backward gears.

7,Hydraulic drive gear

The hydraulic transmission device of M series tractor can shift forward and backward more smoothly and quickly. By manipulating the hydraulic steering bar located in the left hand of the steering wheel can be achieved without stepping on the clutch, which is not only labor-saving but also can improve operational efficiency, especially in the front bucket operation can show its specialty. Especially when hanging agricultural machinery and tools can experience the hydraulic bar to make the tractor easy to move back and forth, accurate in place of the specialty.

8,Hydraulic disc brake

In order to reduce the physical exertion of the operator and extend the service life of the tractor, the M1004 model of Kubota is now equipped with hydraulic wet disc brakes. The brakes require only a small pedal force to maintain high operating efficiency even after repeated heavy operations.

9,Convenient four-wheel drive system engagement

Switching between 2 - and 4-wheel drive is easy with the front - wheel drive bar. Best of all, the front-wheel-drive lever can be switched without traffic, which improves efficiency by eliminating the need to stop and switch when moving from the field to the road.

Note: Do not switch the front wheel drive bar when working under heavy load or when the rear wheel is slipping

10,Parking brake handle

Beside the main shift lever, there is a parking brake handle which is independent of the main brake for easy operation. The parking brake handle is interlocked with the main clutch for accurate and reliable parking on any terrain.

11,Independent power output shaft

Pulling, lifting, mowing or ploughing, the 540 RPM and 720 RPM independent hydraulic power output shafts of the Kubota M-Series tractors make your heavy work easier. The power output clutch with self-adjusting meshing function can make the farm machinery and tools start smoothly. When the clutch is disengaged, the power output system automatically opens the power output brake (the power output clutch interlocks with the power output brake). This means you can mow the grass, operate the hay machine, or water a tree more efficiently.
